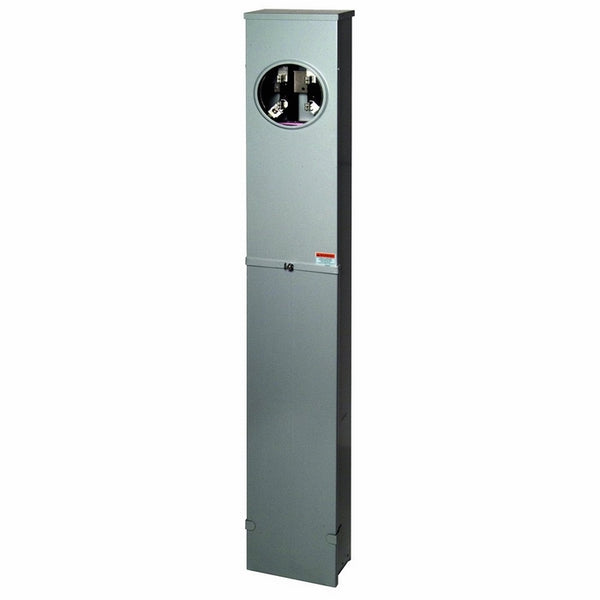

Square D by Schneider Electric UHTRP242363 200A Underground Pedestal Meter Socket With No Bypass

Square d 200 amp ringless 4-jaw single meter socket with no bypass

Accommodates an only underground feed

Suitable for use as service entrance equipment

The square d 200 amp residential ringless meter socket with no bypass surface mounts to provide for a single electric meter. It accommodates multiple wiring configurations for a size hub provision in the top end wall and a 2-1/2 in. Maximum knockout in the bottom end-wall. The meter main uses an aluminum bus, is single phase, three wires, and features a nema 3R rated enclosure for outdoor use. This unit is ansi certified and ul listed for use as service entrance equipment with a maximum load of 600 vac max. This 4-jaw meter socket is compatible with and neutral.
Brand: Square D by Schneider Electric, Model: UHTRP242363, Color: 62.625
