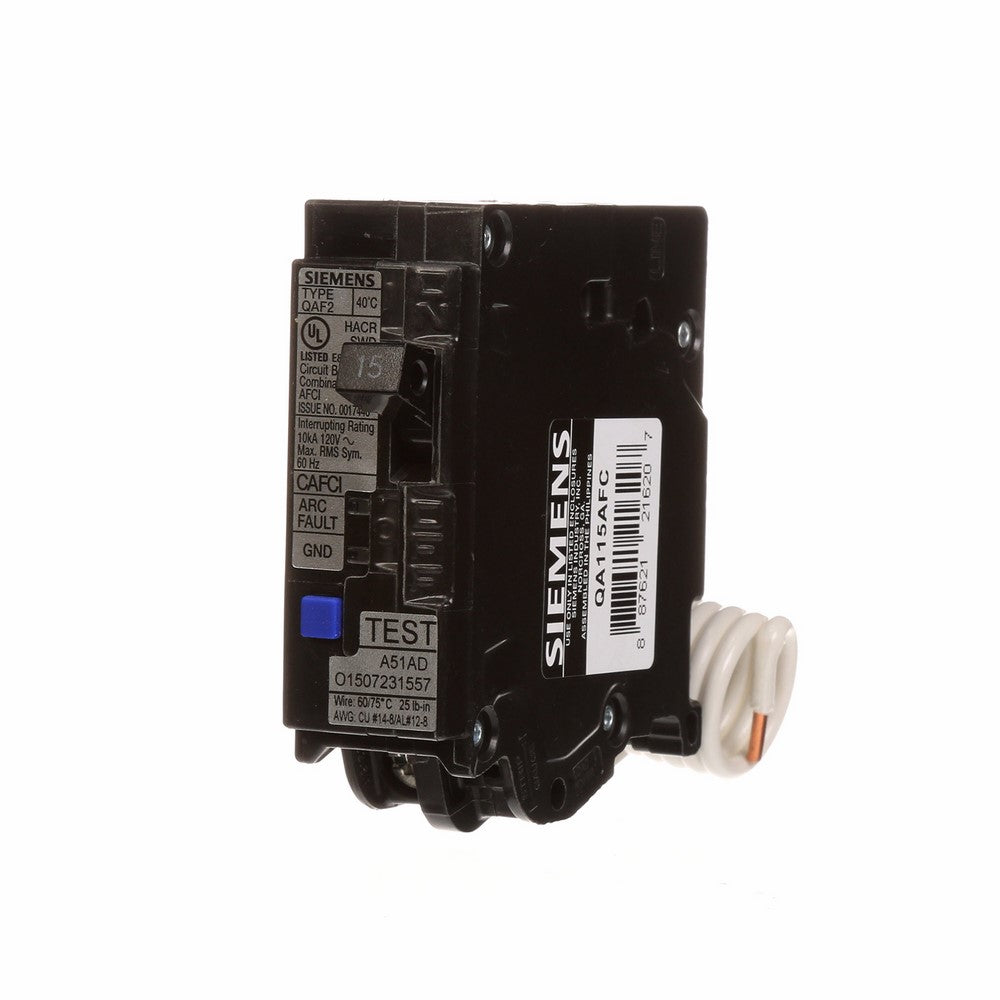

Siemens QA115AFC 15-Amp Single Pole 120-volt Plug-On Combination AFCI Breaker

Single pole, 15 Amp, Combination type AFCI circuit breaker

LED Trip indicators for clear identification of last trip condition

1/4 in. more wire bend space than previous design

Both lugs at the same angle for easier wiring

25 lb./in. torque rating

Plug-in, combination type CAFCI circuit breaker, complies with the requirements for both branch/feeder and outlet circuit CAFCIs. Required on January 1, 2008 by 2005 NEC, combination type CAFCI circuit breakers must be placed on bedroom power and lighting circuits. Protects downstream branch circuit wiring and cord sets and power-supply cords. Provides ARC fault, overload and short circuit protection. UL listed. Protects against worn electrical insulation or damaged wire, misapplied or damaged plug in appliances and equipment, and loose electrical connections. 2 LEDs appear for 5 seconds each time the CAFCI is turned on, up to 30 days after the last trip to indicate last known trip condition. One LED means arcing fault. Two LEDs means arcing fault to ground. 10kA interrupting rating. UL Listed, 120 volt AC. Wire range 14 - 8 AWG. 1" space, 120 volt.
Brand: Siemens, Model: QA115AFC, Color: Black, Size: 15 Amp
