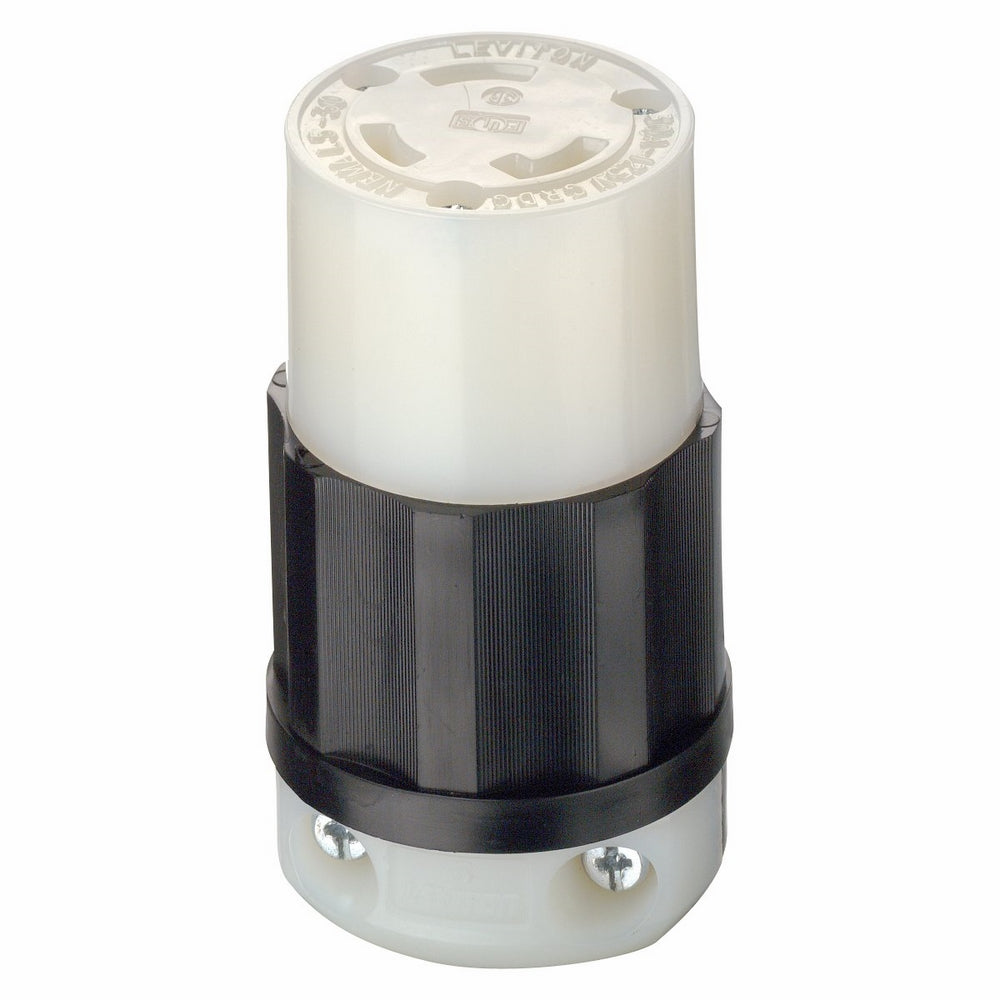

Leviton 2613 30 Amp, 125 Volt, NEMA L5-30R, 2P, 3W, Locking Connector, Industrial Grade, Grounding - Black-White

1 In Stock

Be the first to review this product

Leviton

SKU: EZEB00002NAT8

$38.25

Qty

Add To Cart

Add to wishlist Add to compare

Quick Overview

Brand Leviton Model 2613 Color Black-White Size N/A Super tough nylon body resists damage from severe impact, abrasion and chemicalsNEMA andNon-NEMAconfigurations availableSolid brass blades and contacts feature improved conductivity, low resistance, low heat, and long lifeInternal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wireErgonomically...

Brand	Leviton
Model	2613
Color	Black-White
Size	N/A

Super tough nylon body resists damage from severe impact, abrasion and chemicals

NEMA andNon-NEMAconfigurations available

Solid brass blades and contacts feature improved conductivity, low resistance, low heat, and long life

Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire

Ergonomically designed fluted body provides an ideal surface for gripping and pulling

Leviton Locking Connector, 125 V, 30 A, 2 Poles, 3 Wires, Nema: L5-30R, Cable Range: 0.385 - 0.86 in, Brass Contact, Impact Modified Nylon Body, Black/White, NEMA WD-6 Enclosure, -40 TO 60 deg C, 3.53 in Length X 2.08 in Width, ANSI, CSA C22.2 NO 42, NOM, UL 498, UL Fed Spec WC-596, 16 - 8 AWG, For Industrial Applications.
