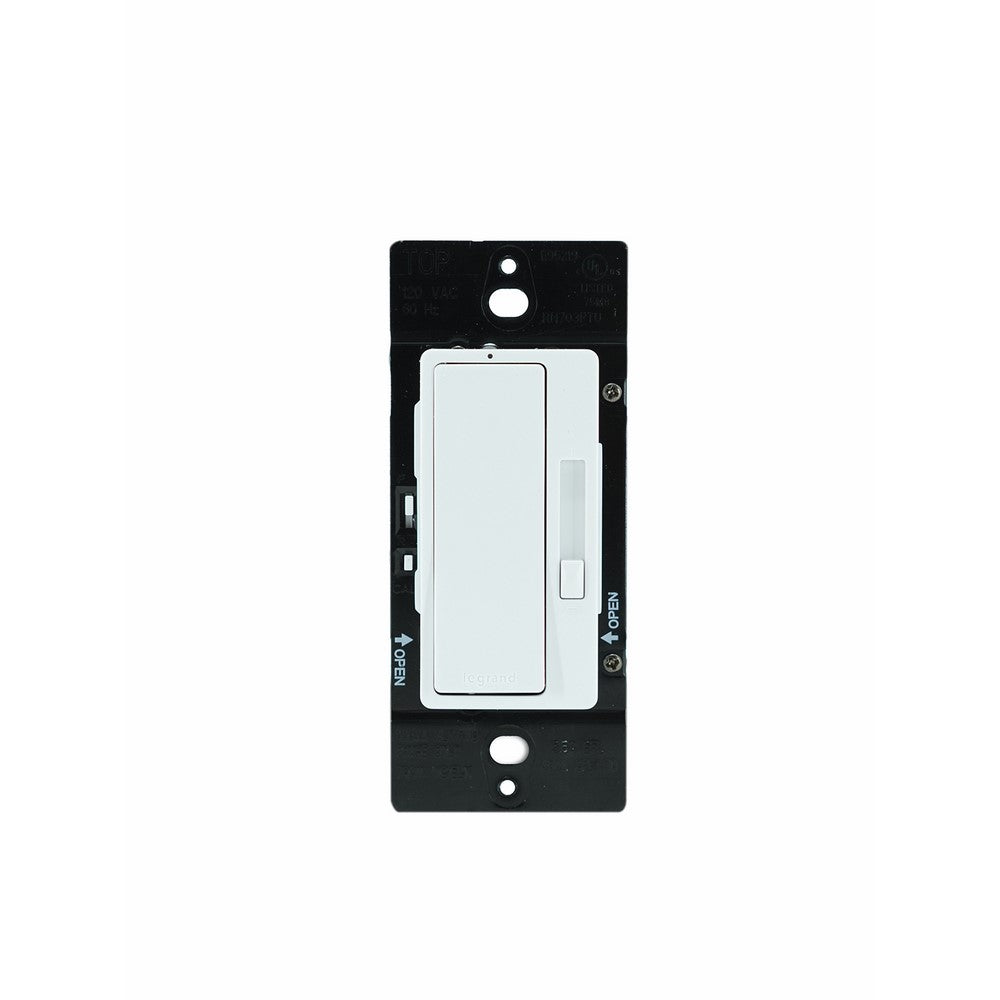

Legrand - Pass & Seymour RH703PTUTCCCV4 radiant 700 Watt Single Pole/3-Way Tru-Universal Dimmer Switch, Tri-Color (Vision Pk)

Out Of Stock

Be the first to review this product

Legrand - Pass & Seymour

SKU: EZFB01M9JTK3W

$78.74

Qty

Add to wishlist Add to compare

Quick Overview

SINGLE POLE/3-WAY DIMMER SWITCH: Convenient operation-combines ON/OFF paddle switch with separate slider for dimming control.LED DIMMER: Works with virtually any dimmable lamp and load on typical residential and light commercial wiring (with the exception of 0-10V LED drivers)BEST UNIVERSAL DIMMER: White LED glows when dimmer is OFF for easy location...

SINGLE POLE/3-WAY DIMMER SWITCH: Convenient operation-combines ON/OFF paddle switch with separate slider for dimming control.

LED DIMMER: Works with virtually any dimmable lamp and load on typical residential and light commercial wiring (with the exception of 0-10V LED drivers)

BEST UNIVERSAL DIMMER: White LED glows when dimmer is OFF for easy location in the dark. And also, it has a self-calibration feature allows you to select lamp type, which then automatically sets the minimum voltage for that lamp, eliminating flicker and poor performance

AVAILABLE COLORS: Comes with three interchangeable face colors: Ivory, White, Light

RATING: Incandescent, Halogen & ELV: 700W, MLV: 500VA, LED/CFL: 450W, EFL: 5.5A (Use RH4FBL3PTC for 0-10V)

Ideal for typical residential and light commercial applications, the Tru-Universal Dimmer is the simple solution to all your dimming challenges. It works with every dimmable lamp, load, and fixture (except 0-10V loads)

The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.

How it Works:

Paddle Switch

Toggling the Paddle Switch up and down switches the dimmer's Hot terminal between the two traveler terminals, cycling the load power on and off.

The switch operates in both single pole and three-way installations.

Dimming Slider

Sliding to the top-most position sends full power to the load resulting in maximum brightness.

Sliding to the bottom-most position produces minimum brightness (maximum dimming)

Brand: Legrand - Pass & Seymour, Model: RH703PTUTCCCV4
