Interpower 83030400 IEC 60320 C20 Power Inlet with Quick Disconnects, IEC 60320 C20 Socket Type, Black, 16A/20A Rating, 250VAC Rating

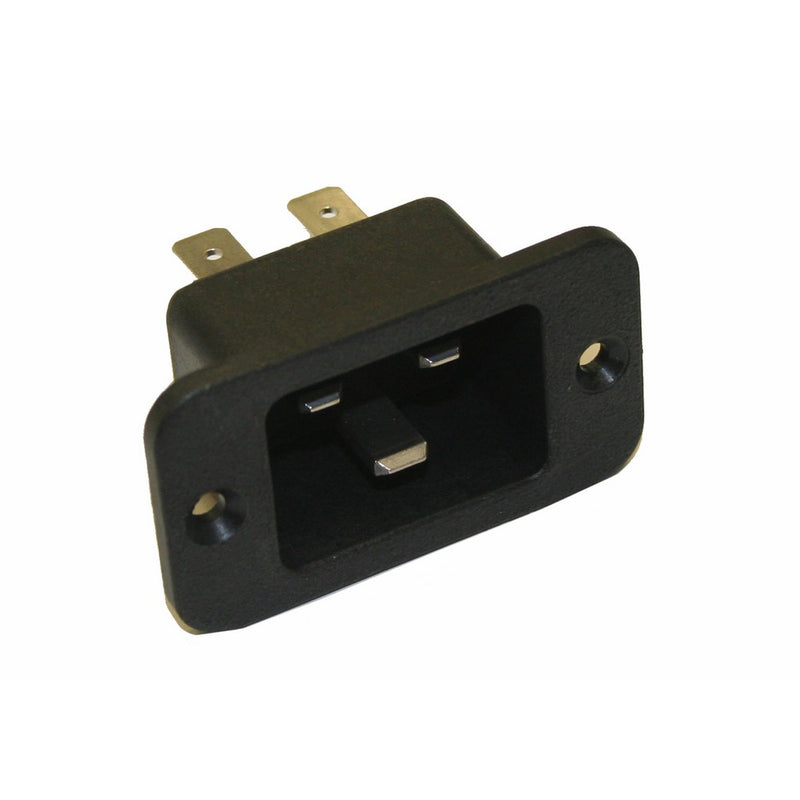

This Interpower 83030400 power inlet is rated for 250 VAC at 16 amps (international) or 20 amps (North America) and has an International Electrotechnical Commission (IEC) 60320 C20-style socket. The inlet housing is made of polybutylene terephthalate (PBT) and has nickel-plated brass terminals for corrosion resistance. The outlet side of the terminals are tab-type quick-disconnect male connectors. The inlet mounts to an equipment housing using two screws (not included) and is located in a 20 mm high and 27.5 mm wide cutout. This power inlet has a maximum operating temperature of 70 degrees C and is Underwriter Laboratories (UL) Recognized and Canadian Standards Association (CSA) certified for quality assurance, and is suitable for powering electronic devices that use this socket configuration.

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right.

Interpower manufactures power system components such as cords, cable and connectors, plugs, sockets, circuit breakers, and terminal blocks. The company, founded in 1975 and headquartered in Oskaloosa, IA, meets International Organization for Standardization (ISO) standard 9001:2008.
