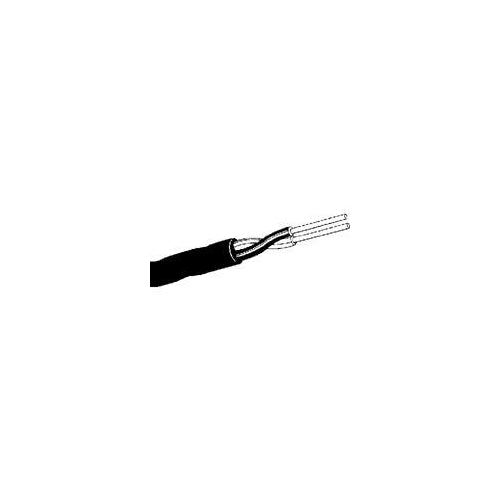

18/8x250 Pj Cl-2 Thermost Cable

Brand	SOUTHWIRE COMPANY
Model	65676902
Color	Brown
Size	N/A

Price For: Each Package Type: Spool Cable Type: Non-Plenum Cable Max. Temp.: 60 Standards: Article 725, UL Listed Item: Thermostat Cable Cable Rating: CL2 Voltage: 150 Number of Conductors: 8 Jacket Color: Brown Spool/Coil Length: 250 ft. Nominal Outside Dia.: 0.20 Wire Size: 18 AWG Country of Origin (subject to change): United States

ETL Listed type CL2 power limited circuit cable is a general-purpose 8 conductor low voltage control cable. Construction provides solid uncoated copper conductors insulated with polyvinyl chloride (PVC) insulation twisted together without filler and covered with an ETL listed sunlight resistant PVC jacket. Conductor colors are red, white, green, blue, yellow, brown, orange and black. Used for air conditioning controls, heat pumps, heating controls, thermostats and bell and alarm systems. For use in accordance with the NEC Article 725. Rated 60 degrees Celsius continuous in air. Solid 18/8 type CL2. Meets UL 1581 vertical flame tray test. 15 mil jacket thickness, approximately 202 mil overall cable diameter.
