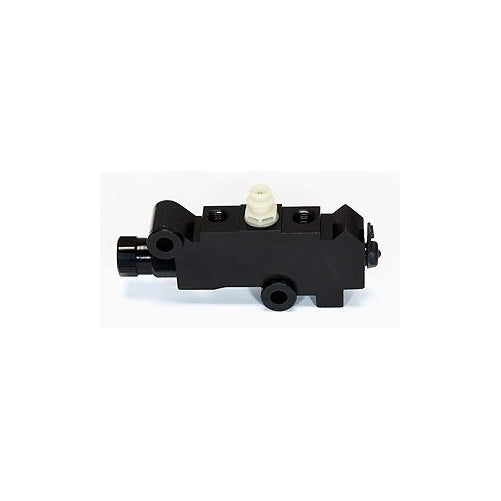

Wilwood Factory Replacement Combo Proportioning Valve

Wilwood
SKU: MIDB004H38O3G
Regular Price $129.50 Sale Price Unit price: $0.00

Quick Overview

Brand Wilwood Valve is manufactured from high quality aluminum and coated with a durable black anodized finish63% pressure reduction (rear) after 350 PSI knee point30 PSI delay rear-to-front circuitCircuit failure sender activation at 50 /- 10 PSIRecommended maximum operating pressure: 2000 PSIGENERAL INFORMATION: 63% pressure reduction (rear) after 350 PSI...
Brand Wilwood

  • Valve is manufactured from high quality aluminum and coated with a durable black anodized finish
  • 63% pressure reduction (rear) after 350 PSI knee point
  • 30 PSI delay rear-to-front circuit
  • Circuit failure sender activation at 50 /- 10 PSI
  • Recommended maximum operating pressure: 2000 PSI


  • GENERAL INFORMATION:
  • 63% pressure reduction (rear) after 350 PSI knee point
  • 30 PSI
  • delay rear-to-front circuit
  • Circuit failure sender activation at 50 /- 10 PSI
  • Recommended maximum operating pressure: 2000 PSI
  • Auto-fill pressure requirement: 120 PSI max
  • -50F DEGREES to 160F DEGREES operating temperature range.

  • VALVE HIGHLIGHTS:
  • Circuit failure indicator:
  • This function completes circuit through switch when either front or rear brake circuit experiences pressure loss or differential

  • Proportioning function:
  • Non-adjustable front-to-rear proportioning (knee point, rate, etc.)

  • Anti-dive or metering delay valve:
  • Enables rear brake pressure to build momentarily before front brake pressure builds

  • Why is Wilwood's valve better than other OE replacement valves
  • Each unit is tested at the factory for all functions prior to shipment
  • Each unit is pressure leak tested
  • Valve is manufactured from high quality aluminum and coated with a durable black anodized finish.
