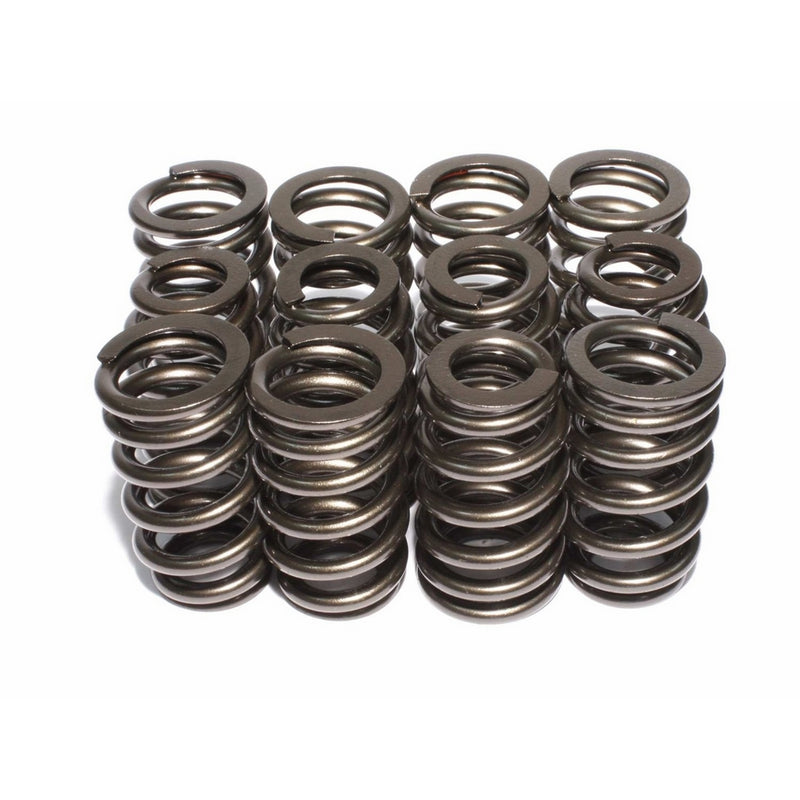

COMP Cams 26915-12 Beehive 1.055"/1.290" O.D. Valve Spring, (Set of 12)

Brand	Comp Cams
Model	26915-12

1.055 inches/1.290 inches outside diameter, .650 inches/.885 inches inside diameter Beehive valve spring

105 pounds 1.800 inches seat load and 293 pounds 1.200 inches open load capacity

Originally designed for LS engine applications but will work in many others

.600 inch maximum lift

With a .600 inch maximum lift, these Beehive valve springs were designed for hydraulic roller cams. COMP Cams Beehive valve springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.
