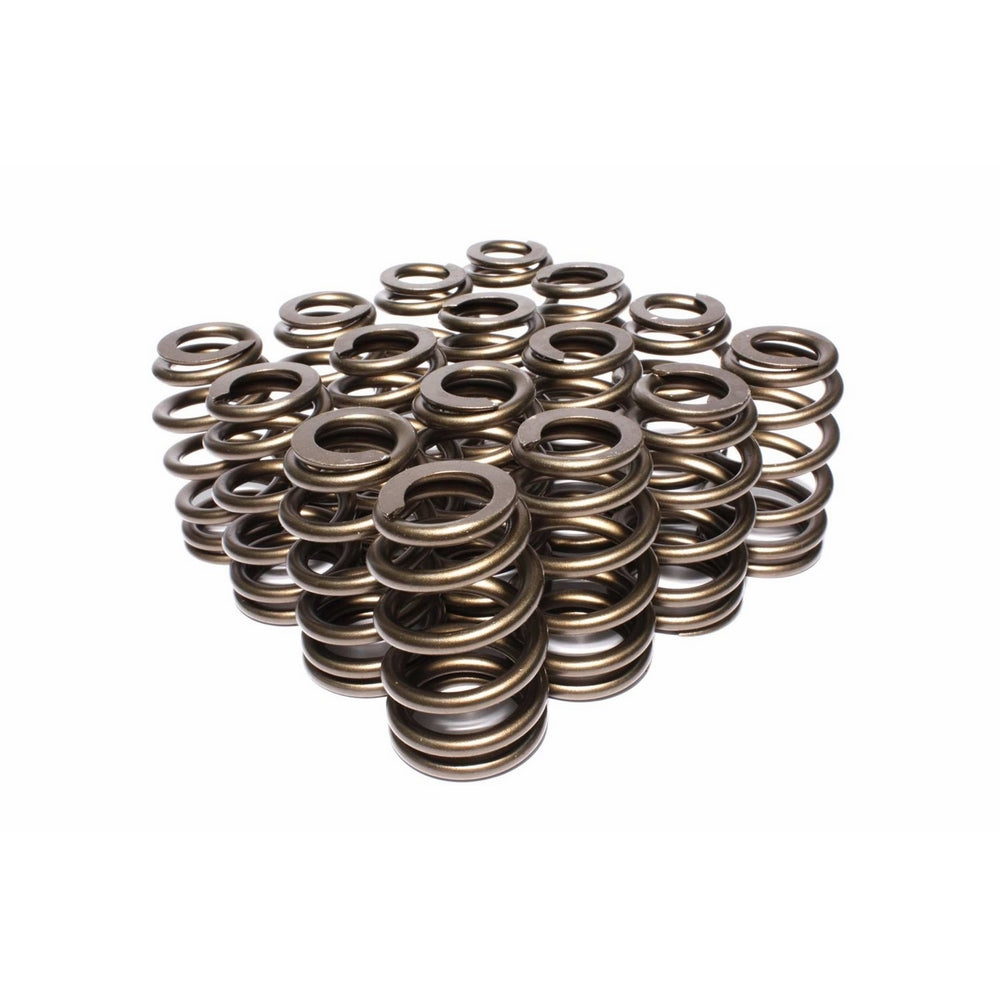

COMP Cams 26056-16 Beehive 1.185"/1.454" O.D. Valve Spring, (Set of 16)

Brand	Comp Cams
Model	26056-16

1.185 inches/1.454 inches outside diameter, .731 inches/1.000 inches inside diameter Beehive valve spring

160 pounds 1.800 inches seat load and 420 pounds 1.150 inches open load capacity

.640 inch maximum lift

COMP Cams Beehive valve springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.
